Description

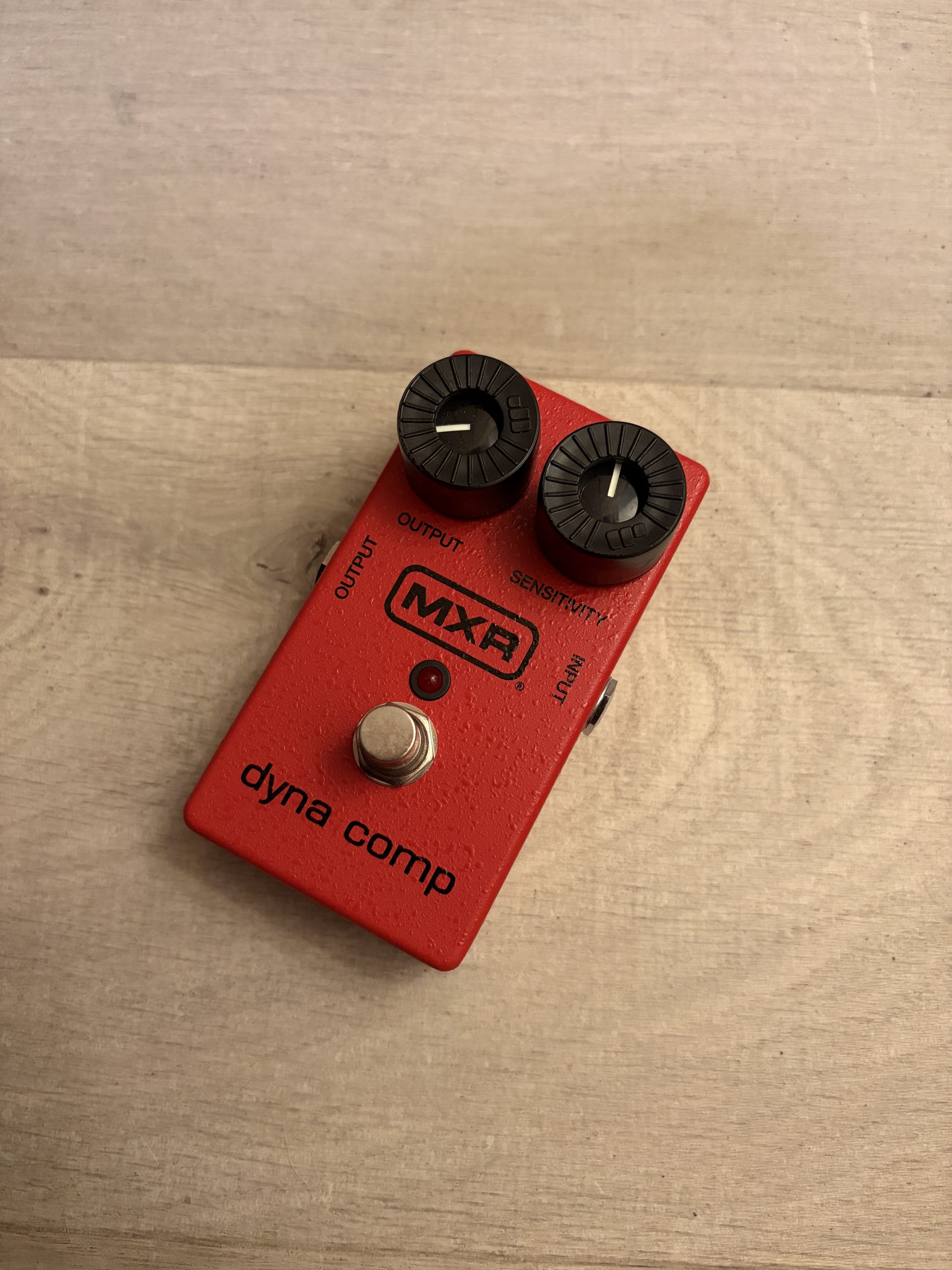

MXR Dynacomp
- Condition – Excellent
-
Circuitry Type — Analog OTA (Operational Transconductance Amplifier)
-
Control Interface — “Output” (Volume) and “Sensitivity” (Compression Threshold)
-
Bypass Style — Hardwire
-
Input Impedance — 1 MΩ
-
Output Impedance — 10 kΩ
-
Signal-to-Noise Ratio — >95 dB
-
Current Draw — ~3.3 mA
-
Power Requirement — 9V DC Center Negative or 9V Battery
-
Enclosure Material — Heavy-duty Die-cast Zinc
-
Color Finish — Textured “Red Script” or Matte Red
-
I/O Jacks — 1/4″ Mono Input / 1/4″ Mono Output
-
Dimensions — 111 mm x 60 mm x 32 mm
-
Weight — Approximately 0.9 lbs (408g)
-
Status Indicator — Red LED (Standard models)
-
Compression Ratio — Variable (up to 36 dB of gain reduction)
-
Attack Time — ~5 ms
-
Release Time — ~1 s
-
Maximum Input Level — -5 dBV
-
Maximum Output Level — -12 dBV
